3 Axle Flatbed Trailer
Send Inquiry
Chat Now
Product Details
We are a Chinese semi-trailer manufacturer supplying various types of semi-trailers to Africa, Asia, and South America. We have been in this industry for 20 years. We can customize 3 axle flatbed trailers to your needs.

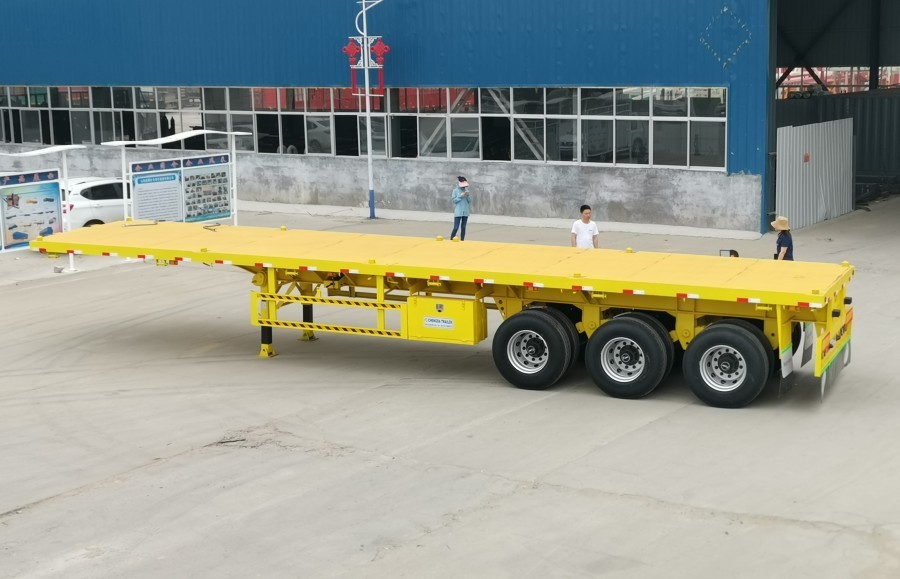

Features of 3 axle flatbed trailer
The frame uses "I"-shaped high-strength steel and channel steel construction, ensuring excellent torsional, impact, and collision resistance, adapting to various complex road conditions.
All our components are from well-known brands, including JOST landing gear, WABCO emergency braking systems, and FUWA axles, extending the service life of our flatbed trailers. We can also use customer-specified brands.
The loading platform uses 3mm checkered steel plate to increase the friction of the loading surface.
The 3 axle flatbed semi trailer uses a two-component coating specifically designed for the high-temperature environment of Africa. This coating has a longer service life, is less prone to peeling, and has good high-temperature resistance.
Applications of flatbed trailer
3 axle flatbed semi trailers are mainly used in ports, logistics, and docks to transport 20-foot, 40-foot, and 53-foot and larger containers as cargo carriers.
Specifications
| Trailer Model | 3 Axle Flatbed Trailer |
| Overall Dimension(L x W x H)(mm) | 12500 * 2500 * 1600 |
| Loading Weight | 40000kg |
| Axle | 3*13Ton Axle |
| Main Beam | Q345 carbon steel, the height of the main beam is 500mm, the upper plate is 14mm, the down plate is 16mm, the middle plate is 8mm |
| Platform Plate | 3mm Diamond plate |
| Side Beam | Q235 16# channel steel |
| Suspension System | Mechanical Leaf Spring Suspension |
| Leaf Spring | 90(W)mm*13(Thick)mm*10Layer |
| Container Twist Locker | 12pcs container locker |
| Tire Type and Quantity | 12R22.5 12units |
| King Pin | 50#/90# |
| Spare Wheel Bracket | 2pieces |
| Tool Box | 1 standard |
| Landing Gear | Standard 28ton single action supporting legs |
| Brake System | Dual line braking system |
| Brake air chamber | six double chamber |

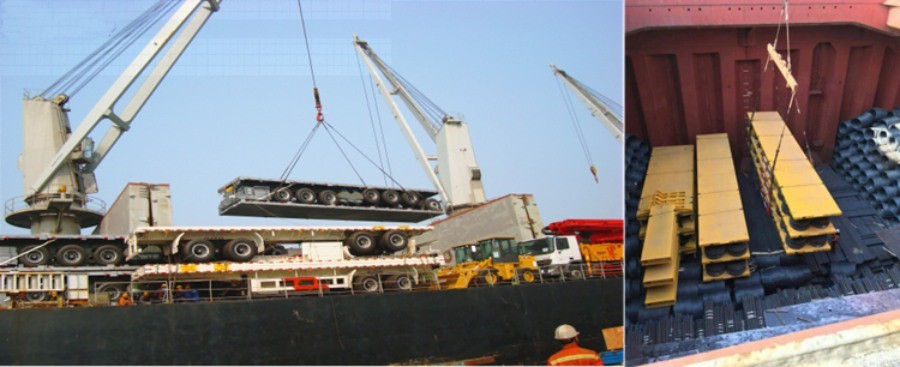

Packaging and Shipping
Naked and waxed, shipped in containers or bulk cargo ships.
We always use the best packaging solutions to reduce shipping costs and offer you highly competitive prices.
About Us
Shandong Chengda Truck Trailer Co., Ltd. established in 2005, is a qualified manufacturer of various truck trailers, such as 3 axle flatbed trailer, lowbed semi trailers, freight trailers, dump trailers, and tanker trailers, etc.
